How to Use a Stud Finder: What to Check Before You Drill
Hanging a shelf seems straightforward until your stud finder lights up in three different places. You scan again, get a slightly different reading, and wonder which pencil mark to trust.
Knowing how to use a stud finder starts with understanding what your tool detects. Some models locate edges, others indicate a center, and magnetic finders locate metal fasteners behind the wall.
Quick Answer
Hold the stud finder flat against the wall and follow its startup procedure. Scan slowly, mark the indicated edges or center, then check from the opposite direction and at different heights. With a magnetic finder, look for several vertically aligned detection points. Repeatable readings help locate framing, but they do not establish that the spot is clear of pipes or wiring.
Before You Start Scanning
Check your model’s instructions for its calibration procedure and indicator meanings. A beep can signal an edge, a center, or an error. It is not a universal signal to start drilling.
Install or charge the battery as directed and choose the correct scanning mode. Stud, metal, and electrical modes serve different purposes.
Keep the sensing face flat against the wall throughout the pass. Hold the intended grip and move slowly without tilting or lifting the tool.
Using an Edge-Finding Electronic Stud Finder
An edge finder locates the sides of a suspected stud so you can estimate its center.
Many Zircon edge-finding models calibrate while held against the wall. Follow the startup instructions and wait for the ready indication. If your model signals a calibration error, move a few inches and restart.
Slide sideways until the designated edge indicator activates. Make a light pencil mark at the tool’s marking notch or reference point.
Approach from the opposite side, repeating the startup procedure if required, and mark the other edge. Halfway between those marks is the estimated center.
Check again a few inches above and below. The marks should follow a reasonably consistent vertical path. If they shift substantially, investigate before choosing a mounting point.
Affiliate disclosure: As an Amazon Associate, I earn from qualifying purchases.

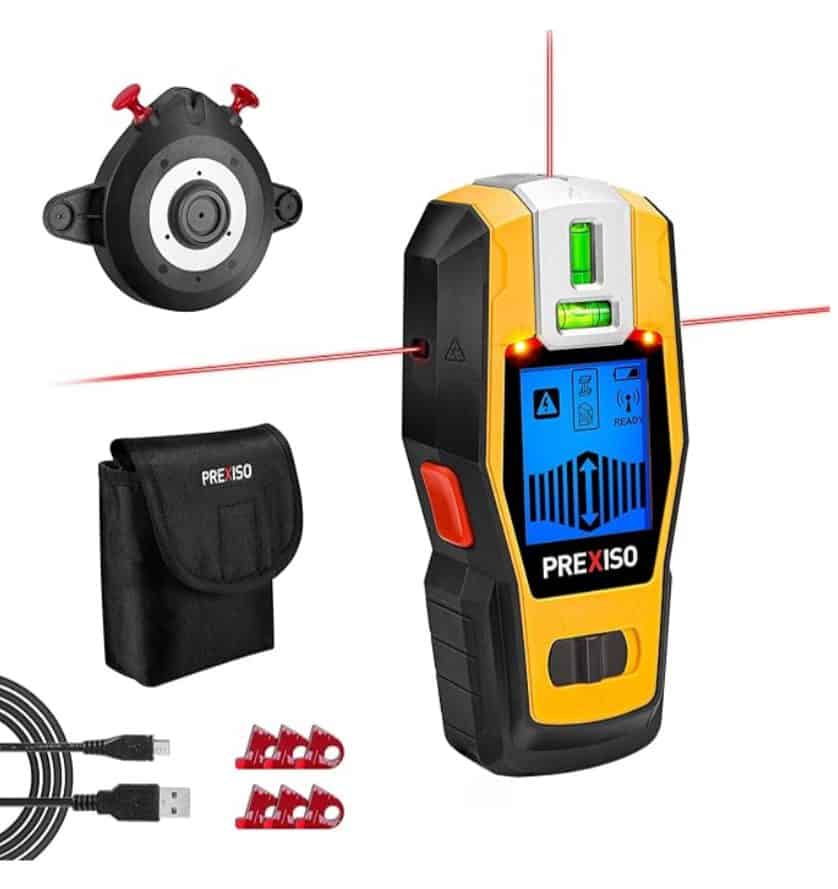

PREXISO 2-in-1 Stud Finder with Laser Level
Combines stud scanning and laser alignment in one tool. Follow the exact model’s scanning instructions before using the laser to help lay out your project.
Using a Center-Finding or Multi-Sensor Stud Finder
A center-finding model gives a specific center indication. A multi-sensor model may show a band of lights representing the detected area.
Follow its startup procedure, then mark the indicated center at the tool’s reference point. If the display shows boundaries instead, estimate the midpoint as described in the manual.
Calibration varies by model. The Franklin ProSensor 710+, for example, lets you press and hold the button to begin scanning without a separate calibration step.
Repeat the scan from the opposite direction and at another height. A wide or irregular reading needs more investigation.
The Franklin 710+ detects density changes. It cannot identify a hidden object as a stud, pipe, or wire.
Affiliate disclosure: As an Amazon Associate, I earn from qualifying purchases.

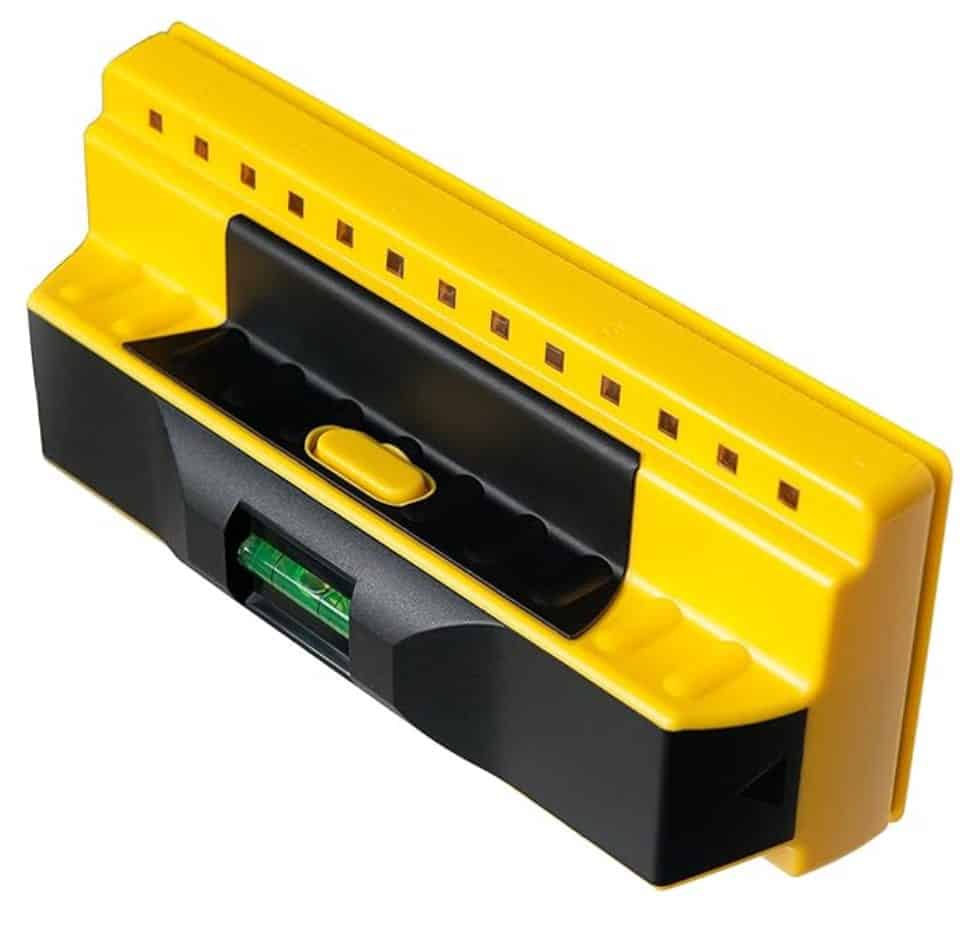

Franklin ProSensor 710+
A multi-sensor electronic finder with an LED display for viewing the detected area. Press and hold the button to scan without a separate calibration step.
Using a Magnetic Stud Finder

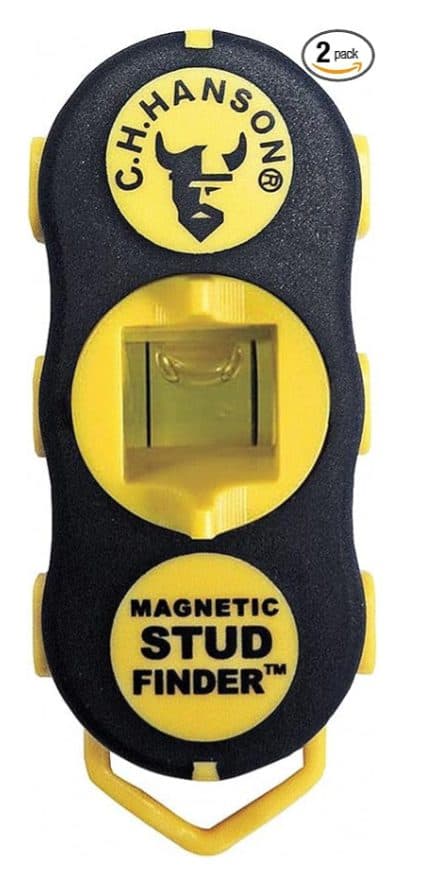

A magnetic finder detects metal fasteners behind the wall surface. Models such as the C.H. Hanson require no batteries or calibration.
Sweep it slowly across the wall until you feel an attraction. If you find nothing, try higher or lower. You may be scanning between fasteners.
Mark the strongest attraction point, then search above and below for additional points. Several vertically aligned detections suggest fasteners attached to framing.
Those dots mark detected metal. They do not establish the stud’s exact edges or guaranteed center, so one isolated attraction point needs further checking.
Why Does My Stud Finder Keep Giving Different Readings?
Start with the battery, settings, and wall contact. Then consider whether the wall material is suitable for your tool.
| What you notice | What to check next |
|---|---|
| Marks change between passes | Slow down, keep the sensing face flat, and use the intended grip. |
| The tool signals an error at startup | Check its calibration instructions and restart elsewhere if directed. |
| The display is weak or erratic | Check the battery condition and use the specified battery type. |
| The detected area seems unusually wide | Check the mode and compare readings above and below. |
| Readings remain unreliable on plaster, tile, or textured walls | Check the model’s supported materials and detection limits. |
Uneven plaster, foil-backed materials, and metal mesh can interfere with detection. Repeating the same pass will not necessarily resolve a material limitation.
If the marks still disagree, don’t choose one just because it lands where you wanted the shelf.
What Should You Check Before Drilling?
Finding framing does not establish that the fastener’s path is clear. Wiring and pipes can pass through studs. A missing electrical warning is not proof that no wiring is present.
Consider nearby outlets, switches, plumbing fixtures, and what is on the other side of the wall. Do not drive a nail into an uncertain spot to test the reading. If you cannot establish a suitable fastening location, get qualified help.
Scan every mounting point. Common spacing can guide your search, but measuring 16 inches from one stud does not confirm the next.
Once you have a suitable location, choose hardware for the load and wall construction.
Make Sure the Readings Agree
Before reaching for the drill, scan back across your marks and check at another height.
Repeatable results give you better evidence of where framing may be. If the readings disagree, resolve that uncertainty before making a hole.
